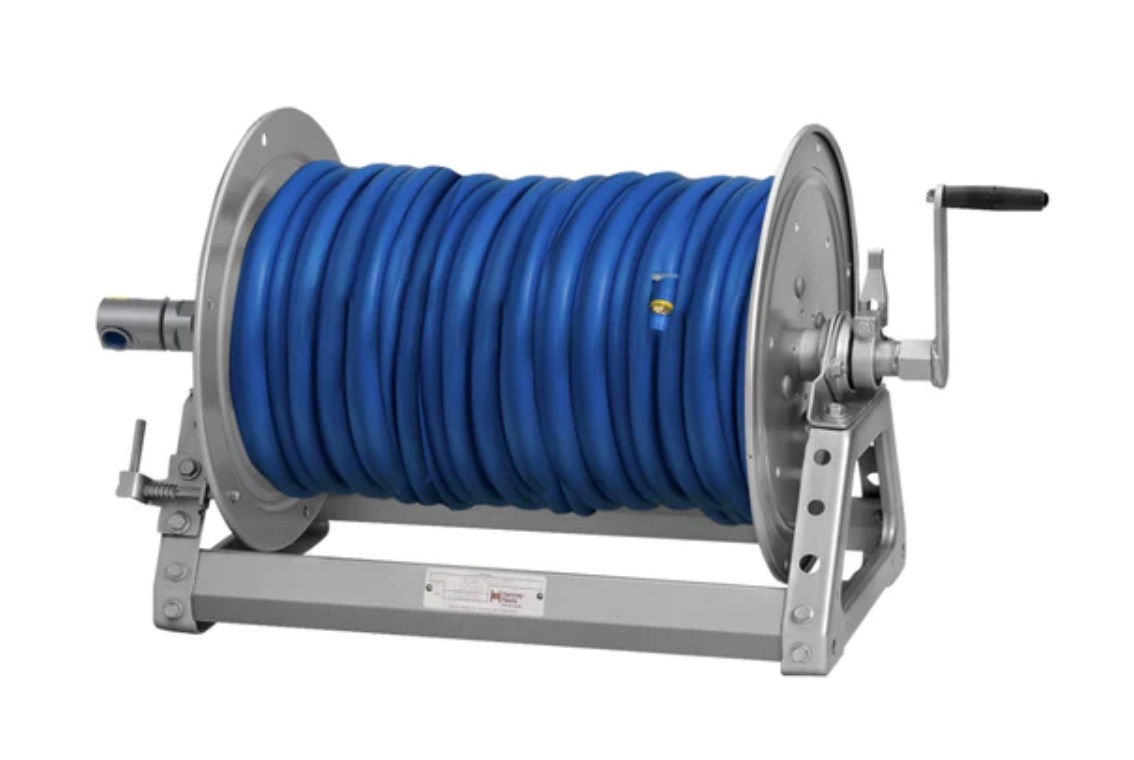

Outfit your sprayer with the 1526-17-18H5M (upgraded to handle up to 5000 psi) Hannay 18″ Manual Hose Reel. This reel includes a cam-lock drag brake and spring actuated pin lock with the option of roller guides for more efficient reeling. While it is a manual reel, an electric hydraulic or compressed air motor can make operation easier.
**Hose shown on reel in picture sold separately**
Features:
- Rewind: Manual hand crank
- Construction: Carbon steel, e-coated and then finished with a modified high performance acrylic enamel paint (metallic graphite color)
- Distance between discs: 18″
- Standard inlet: 90° ball bearing swivel joint, 1/2″ female NPT threads
- Standard outlet: 1/2″ female NPT threads
- Optional rollers available: FH3 (open top) and C roller (fully enclosed) assemblies available to mount on hose reel
- Standard pressures to 5000 psi, available up to 10,000 psi (690 bar) Ð must specify
- Temperatures from +20° F to +400° F (-7° C to +204° C)
- Consult factory for other pressures and temperatures
- Hose/Cable Size: 1/4″ to 5/8″ ID
- Capacity of Reel: 200 to 500 feet depending on ID of hose
- 1/4″ ID hose capacity: 500 feet
- 3/8″ ID hose capacity: 400 feet
- 1/2″ ID hose capacity: 300 feet
- 5/8″ ID hose capacity: 200 feet
- Approximate weight: 31 lbs
