Description

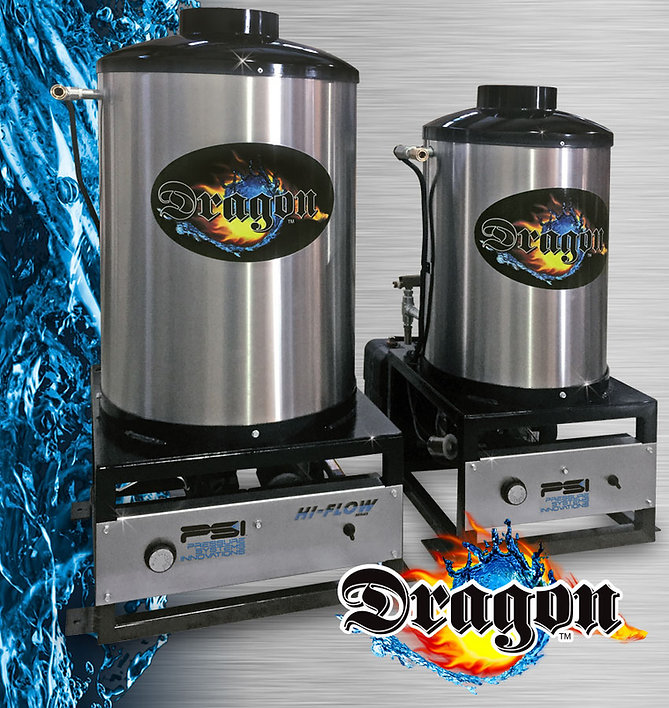

Dragon Hot Box Systems
- Designed to connect to an existing pressure washer to make any cold water suystem transform into a complete hot water unit
- Top-to-bottom schedule 80 coil for maximum temperature rise
- Stainless coil wrap and control panel
- Safety pressure relief valve
- Flow switch
- Adjustable thermostat temperature control
- Beckett burner
- Powder coated steel frame
- Poly 6-gallon diesel/kerosene fuel tank
- Fuel filter
- 12 volt leads or 120 volt GFCI
Our Dragon Hot Boxes are an external Hot Box option to add heat to your pressure washers flow.
DRAGON Specs:
| D-HB40 | 4000 | 4.0 | ADC | 12 | 280,000 | 17″x21″x40″ | 225 lbs. |
| D-HB40-AC | 4000 | 4.0 | ADC | 120 | 280,000 | 17″x21″x40″ | 225 lbs. |
| D-HB50 | 4000 | 5.0 | ADC | 12 | 350,000 | 17″x21″x40″ | 230 lbs. |
| D-HB50-AC | 4000 | 5.0 | ADC | 120 | 350,000 | 17″x21″x40″ | 230 lbs. |
| D-HB80 | 4000 | 8.0 | ADC | 12 | 420,000 | 21″x26″x46″ | 375 lbs. |
| D-HB80-AC | 4000 | 8.0 | ADC | 120 | 420,000 | 21″x26″x46″ | 375 lbs. |
| D-HB100 | 4000 | 10.0 | SDC | 12 | 455,000 | 21″x26″x46″ | 385 lbs. |
| D-HB100-AC | 4000 | 10.0 | SDC | 120 | 455,000 | 21″x26″x46″ | 385 lbs. |
Specs and GPM
The Dragon is Available in the following GPM options. (Please choose your Hot box based on your machines GPM Flow.
4 GPM Machines:
- D-HB40 Dragon Hi-Flow 4GPM
- D-HB40AC Dragon Hi-Flow 4GPM w/ 120V AC with GFCI
- D-HB40SS ALL Stainless Steel Dragon Hi-Flow 4GPM
- D-HB40AC-SS ALL Stainless Steel Dragon Hi-Flow 4GPM w/ 120V AC with GFCI
5.5 GPM Machines:
- D-HB50 Dragon Hi-Flow 5.5GPM
- D-HB50ACÂ Dragon Hi-Flow 5.5GPM w/ 120V AC with GFCI
- D-HB50SS ALL Stainless Steel Dragon Hi-Flow 5.5GPM
- D-HB50AC-SS ALL Stainless Steel Dragon Hi-Flow 5.5GPM w/ 120V AC with GFCI
8 GPM Machines:
- D-HB80Â Dragon Hi-Flow 8GPM
- D-HB80SS ALL Stainless Steel Dragon Hi-Flow 8GPM
10 GPM Machines:
- D-HB100 Dragon Hi-Flow 10GPM
- D-HB100SS All Stainless Steel Dragon Hi-Flow 10GPM
Please note that All Hot boxes may take time to build/assemble. If you are in immediate need of assistance please call the shop to verify the timeline and delivery of your Hot Box. 281-747-6070
